New Construction Dryer Box | Indoor Dryer Vent | Recessed Dryer Vent Box With Gas Port | Dryer Vent | Best Dryer Wall Vent Box Model 4D | Downward Dryer Vent | 2x6 Wall
Product details
| Management number | 215195413 | Release Date | 2026/04/12 | List Price | $24.28 | Model Number | 215195413 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ENERGY SAVING : The protective flex-hose reduces the chance of a build-up of dirt, provides an energy saving by removing the tangles found on the exhaust pipe, and creates a more professional look.
- SAVE SPACE & REDUCE FIRE HAZARD: You can put the dryer on the wall, without breaking the exhaust pipe, or limiting air flow. Install a dryer box for a larger, more effective and safer home.

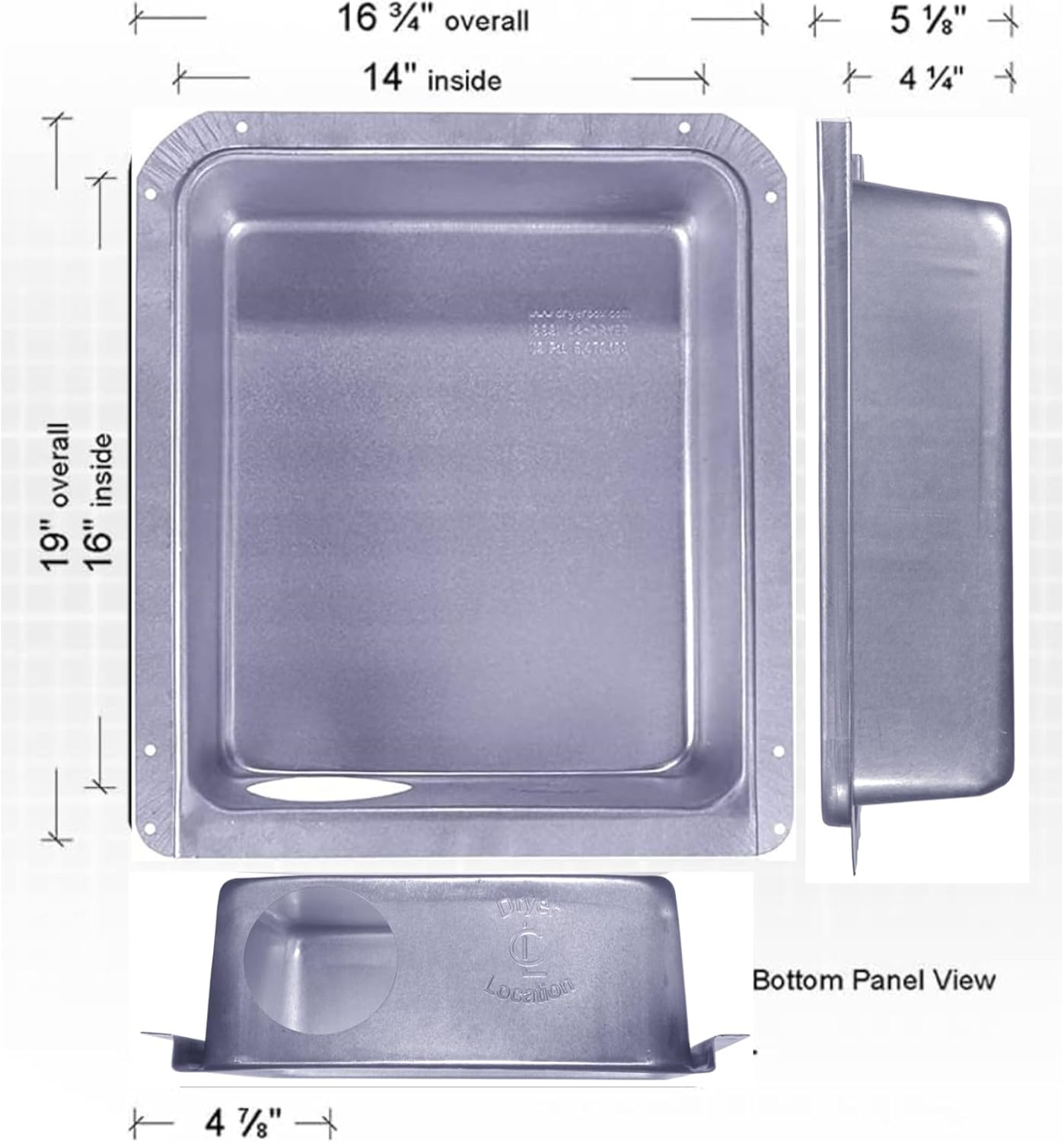

- DRYERBOX MODEL DB-4D(Downward Dryer Vent 2x6): 22 gauge aluminized, heavy molded steel construction recessed dryer vent box with gas port for downward venting, measures 4.25 inches deep from nailing flange. Mostly for 2x6 construction but will also fit into a 2x4 wall that has been firred out with one 1x2 firring strip. For standalone dryers. See Model DB-425 for stacked dryer or one on a pedestal.
- DRYERBOX MODEL DB-350 (Upward Dryer Vent 2x4 ) -Our Model 350 is designed to accommodate installations that require a shallower stud bay or additional space behind the Dryerbox. This model's depth from the nailing flange to the rear is 3 1/2" and will fit in a 2 X 4 stud bay. It is important to note that Snaplock pipe becomes "ovalized" when drywall is secured to the studs. To handle this compressed state, model 350s have an oval port. This makes attaching transition hose a little more challenging but is a compromise to support unusual requirements.
- DRYERBOX MODEL 425 (Upward Dryer Vent 2x6): Our Model 425 favors an upward exhaust direction in new construction and is designed to accommodate installations that provide stud depth equal to or greater than 4.25”. This model's depth from the nailing flange to the rear is 4.25" and will fit in a 2 X 6 stud bay or 2 X 4 studs with 1" furring strips. The Model 425 remains the most popular of the 7 current versions and features the original design. Mounting upright is the intended orientation of this receptacle, but it does work on its side. Mid-wall installations work great for this model going up or down but only for a dryer stacked above the washer.
- UL CLASSIFIED FOR A 1-HOUR F-RATING: All models are UL Classified for a 1-hour F-Rating. Deep drawn manufacturing process and made in the USA. Extension rim protrudes from nailing flange 7/8″. Total of eight 1/4″ mounting holes (4 on each side). Sides are tapered to allow for nesting of multiple boxes. Surface is clean of any oil residue and will adhere paint. Instruction sheet attached to rear panel. All models incorporate a Gas Port knock-out (UL System # W-L-7129)
| Style | 2x6" | Downward Dryer Vent |
|---|---|
| Material | Aluminized Steel |
| Item Weight | 4.03 pounds |
| Part Number | SS-DB |
| Manufacturer | Solid Source HVAC |
| Item model number | SS-DB |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 5.5 x 16.37 x 19 inches |
| Warranty Description | No Warranty |
